What is FG-DVC

The Functional-Group, Depolymerization, Vaporization, Cross-linking (FG-DVC) model is a comprehensive code for predicting yields and compositions of coal-pyrolysis products (gas, tar, and char). The quantification of gas-phase NOx precursors is also possible. The code is particularly useful in modeling high heating rate processes, where experimental data are difficult to collect. Coal switching, blending, and co-firing of biomass and coal are other applications. The model is based on the fundamentals of coal chemistry and physics. The model has recently been extended to biomass and to processes involving large coal particles. For coals, the minimum input is ultimate analysis, but more reliable results are obtained if input files are generated on the basis of TG-FTIR analysis available from Advanced Fuel Research. (TG-FTIR = thermogravimetric analyzer combined with Fourier transform infrared analysis of evolving products.) In the case of biomass, we recommend input files based on TG-FTIR data. The model is available as a stand-alone version and as a submodel for computational fluid dynamics (CFD) codes.


Diverse feedstocks:






waste materials (e.g., waste tires)

The following information provided as a function of extent of devolatilization (e.g., pyrolysis time):


Gas, tar, and char yields


Elemental composition of gas, tar, and char


Molecular weight distribution of tar


Information on coal softening and fluidity


Detailed speciation and quantification of volatile products:


For biomass, additionally:

formic acid
acetic acid


The effect of pressure taken into account


Capability for integration with Computational Fluid Dynamics (CFD) codes

PCGC-2 (pulverized coal combustion/gasification - Brigham Young University)
AIOLOS (University of Stuttgart)
MBED-1 (fixed beds - Brigham Young University)
FBED-1 (fixed beds - Brigham Young University)
MFIX (fluidized beds – U.S. Department of Energy)



Stand-alone versions available on multiple platforms

PC (DOS, Windows 95 / 98 / NT)
Macintosh (under development)


Extensive customer support available from the model developer, Advanced Fuel Research, Inc. (includes TG-FTIR characterization of unusual


Model Input

Elemental composition of coal or biomass
Pyrolysis temperature as a function of time
In the case of biomass, some coals, and non-standard feedstocks, TG-FTIR analysis (a thermogravimetric analyzer combined with Fourier transform infrared analysis of evolving products) – available from Advanced Fuel Research, Inc.



Coal-conversion processes: pyrolysis, gasification, combustion, liquefaction


Coal switching


Coal blending


Co-firing of biomass and coal


Biomass conversion: pyrolysis, gasification, and combustion

Modeling Approach

The modeling approach used in FG-DVC is phenomenological in nature. A suite of well-characterized coals was selected to form an FG-DVC database (library coals), and pyrolysis behavior of these coals was extensively studied using TG-FTIR analysis, pyrolysis Field Ionization Mass Spectrometry (FIMS), Gieseler fluidity, solvent swelling and solvent extraction. Based on this information, three FG-DVC input files were created for each library coal: (1) kinetic file; (2) composition file; and (3) polymer file. The first two files describe the kinetics of gas-product evolution and the amounts of precursor material for each volatile species. A set of independent, first-order reactions with Gaussian activation-energy distributions is used for the kinetic model. The polymer input file contains information on the coal’s swelling and fluid behavior. The library coals can be represented as a network of grid nodes in the so-called van Krevelen diagram (a plot of H/C versus O/C atomic ratios). The required three FG-DVC input files can be generated for any coal, as illustrated in Figure 1. Elemental composition data for an untested coal are plotted in the van Krevelen diagram, and input parameters are interpolated from among input parameters of the three nearest library coals (triangular interpolation). In this way, elemental composition is the only input information that is needed to run the FG-DVC code. For unusual feedstocks, custom input files can be created at AFR.

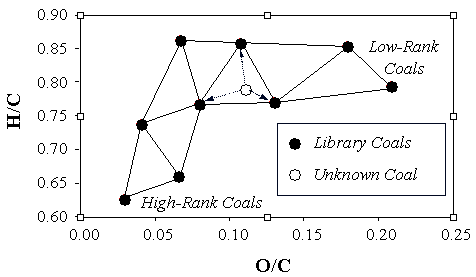

Figure 1. Illustration of an interpolation scheme used to create FG-DVC input files for a coal with an unknown pyrolysis behavior.

Model Validation

The FG-DVC model has been extensively validated against experimental data, and more detailed information on model validation can be found in The FG-DVC Model Description and Validation fact sheet. For the sake of illustration, results of blind model-prediction tests are shown in Figure 2. An independent testing program was carried out on behalf of Electric Power Research Institute (EPRI), and the tests involved drop-tube pyrolysis experiments performed at PowerGen. A set of eight international coals was used, and AFR was provided only with their proximate and ultimate analyses in addition to the nominal pyrolysis conditions (a linear temperature ramp at 2 x 104 K/s from room temperature to 1613 K, followed by an isothermal treatment at 1613 K for 150 milliseconds). The dotted lines in Figure 2 indicate the approximate range of uncertainty in experimental data, and solid symbols represent the FG-DVC model predictions. It can be seen that the agreement is good.

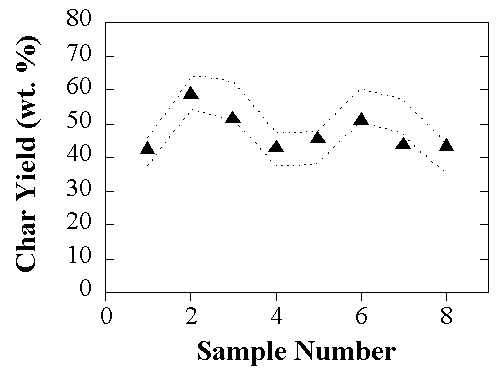

Figure 2. Comparison of PowerGen drop-tube pyrolysis data with FG-DVC model predictions. Dotted lines indicate the uncertainty limits of experimental data, and solid symbols represent model predictions.

Further Information

The following FG-DVC fact sheets are available:


The FG-DVC Model Description and Validation


A List of Publications on the FG-DVC Model


FG-DVC Ordering Information

Inquiries about the FG-DVC model should be directed to Dr. Marek A. Wójtowicz, Manager, Hydrocarbons Group, Advanced Fuel Research, Inc., East Hartford, CT 06108, USA; tel. +1 (860) 528-9806 ext. 142, fax +1 (860) 528-0648, e-mail: marek@AFRinc.com.
